Skunkwurx RaceDash - Ariel Atom Carbon Fibre Dash Surround with holes for Skunkwurx LED Buttons

SKU:DSH/SKW/RD
Skunkwurx RaceDash for Dash2 / Dash2 Pro with LED Buttons
Move your mouse over image or click to enlarge

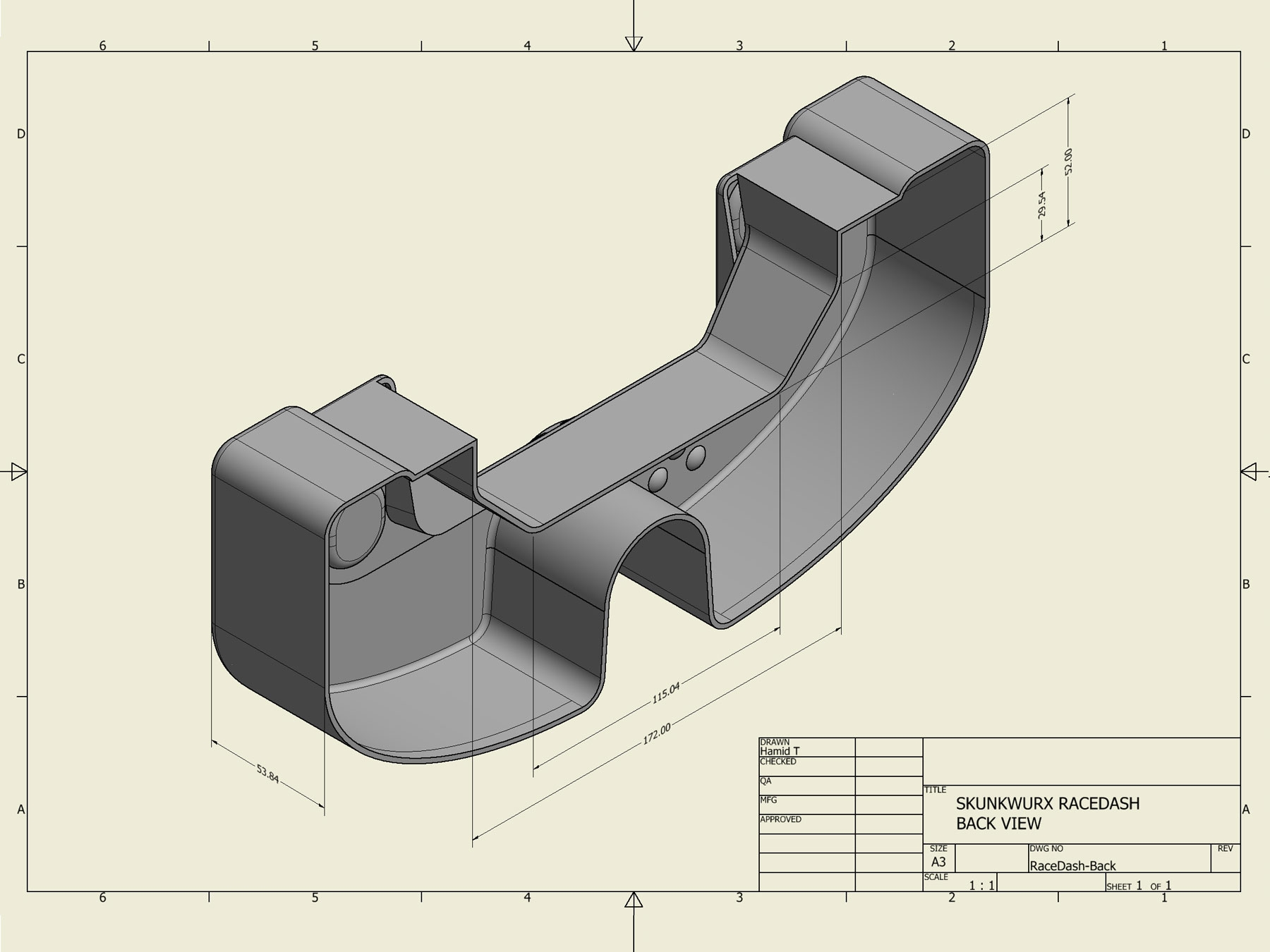

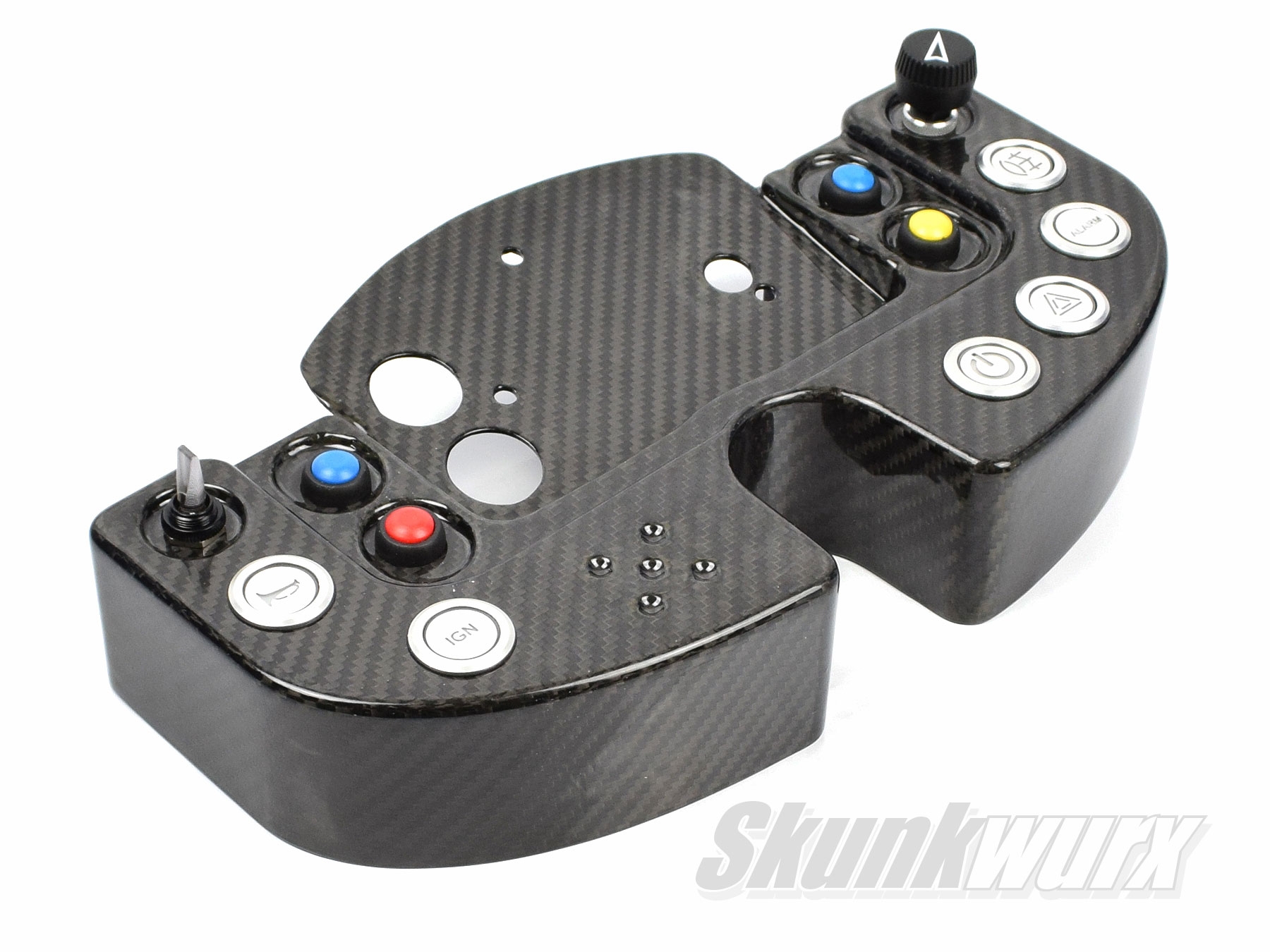

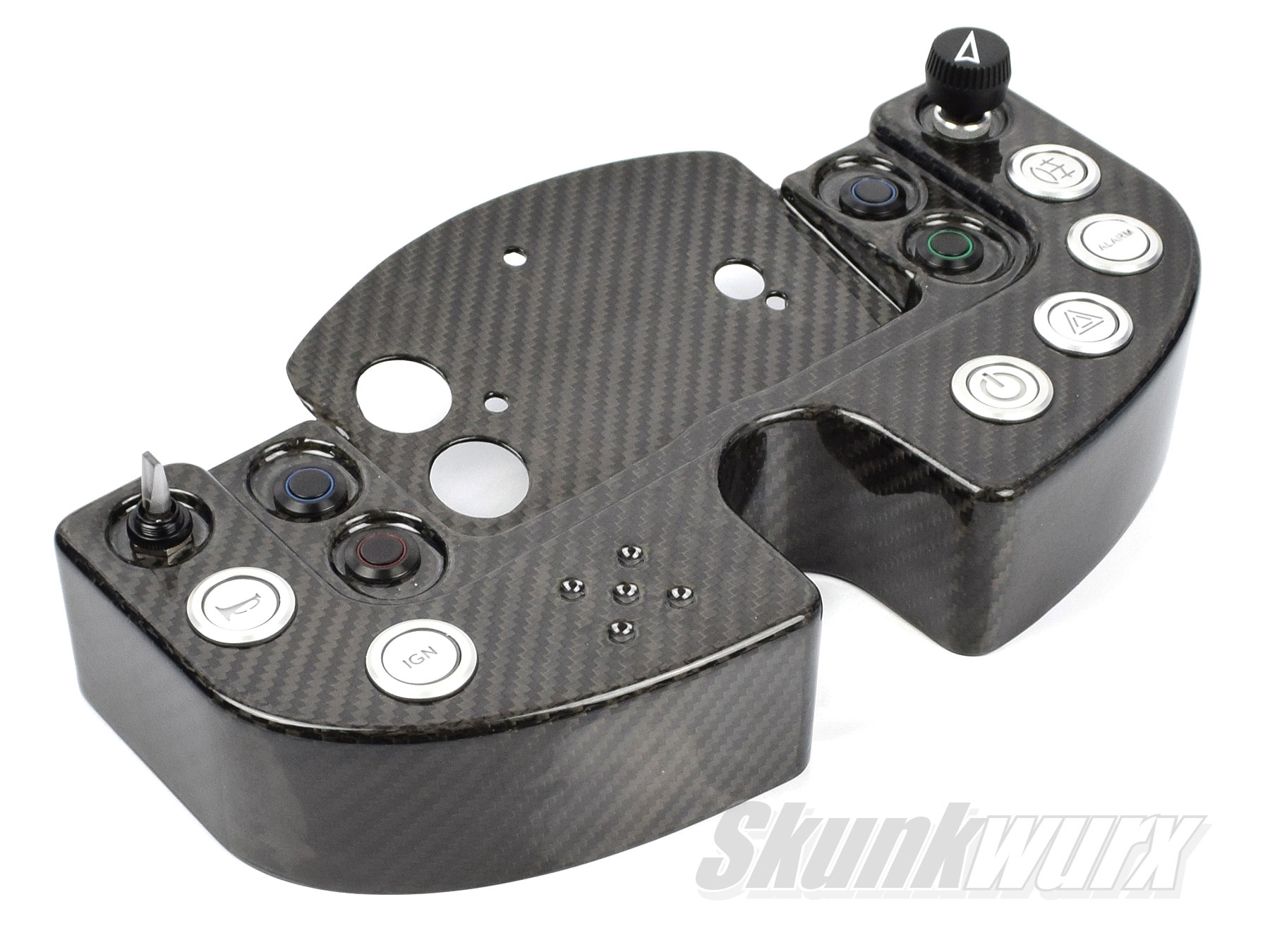

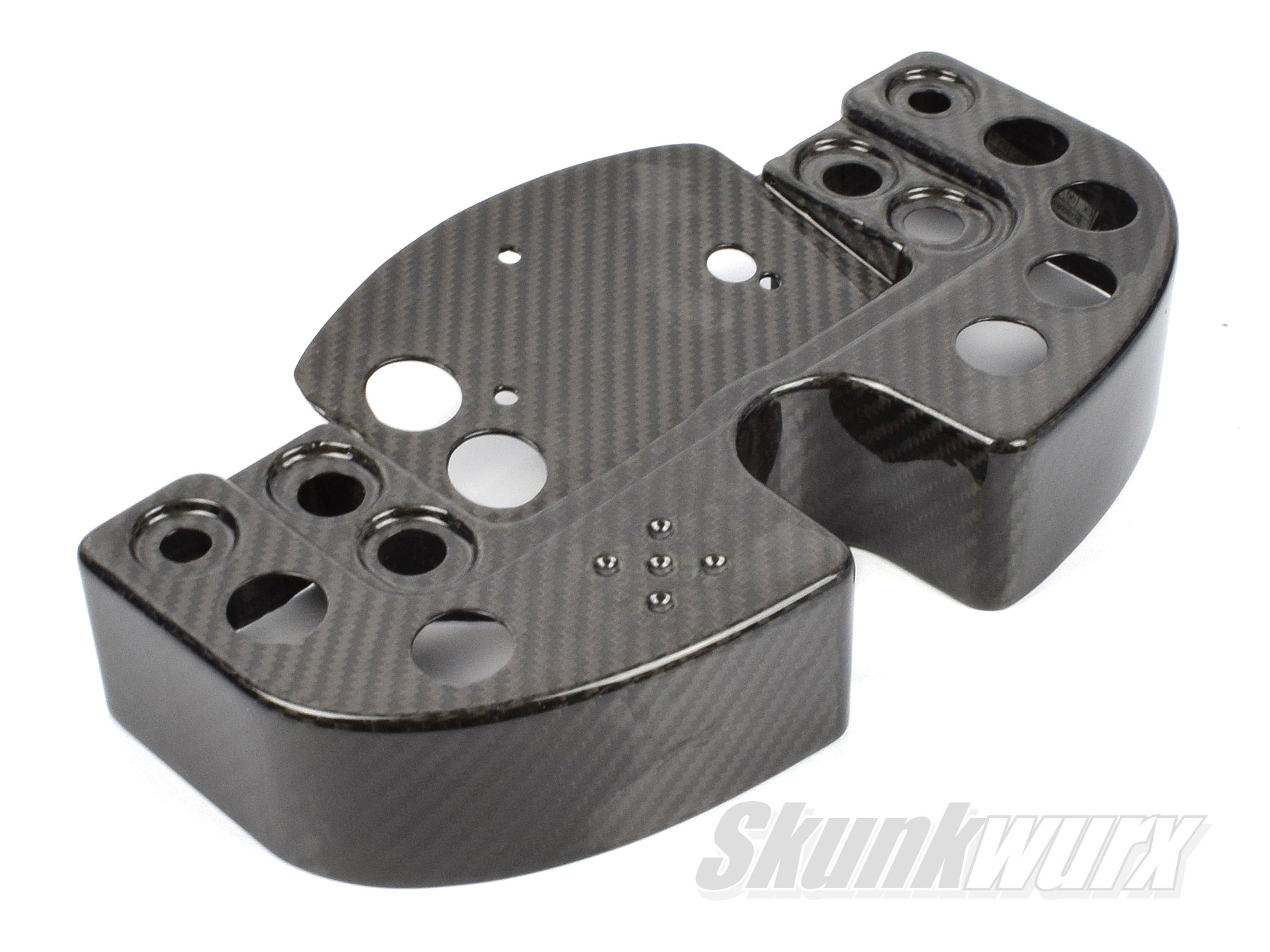

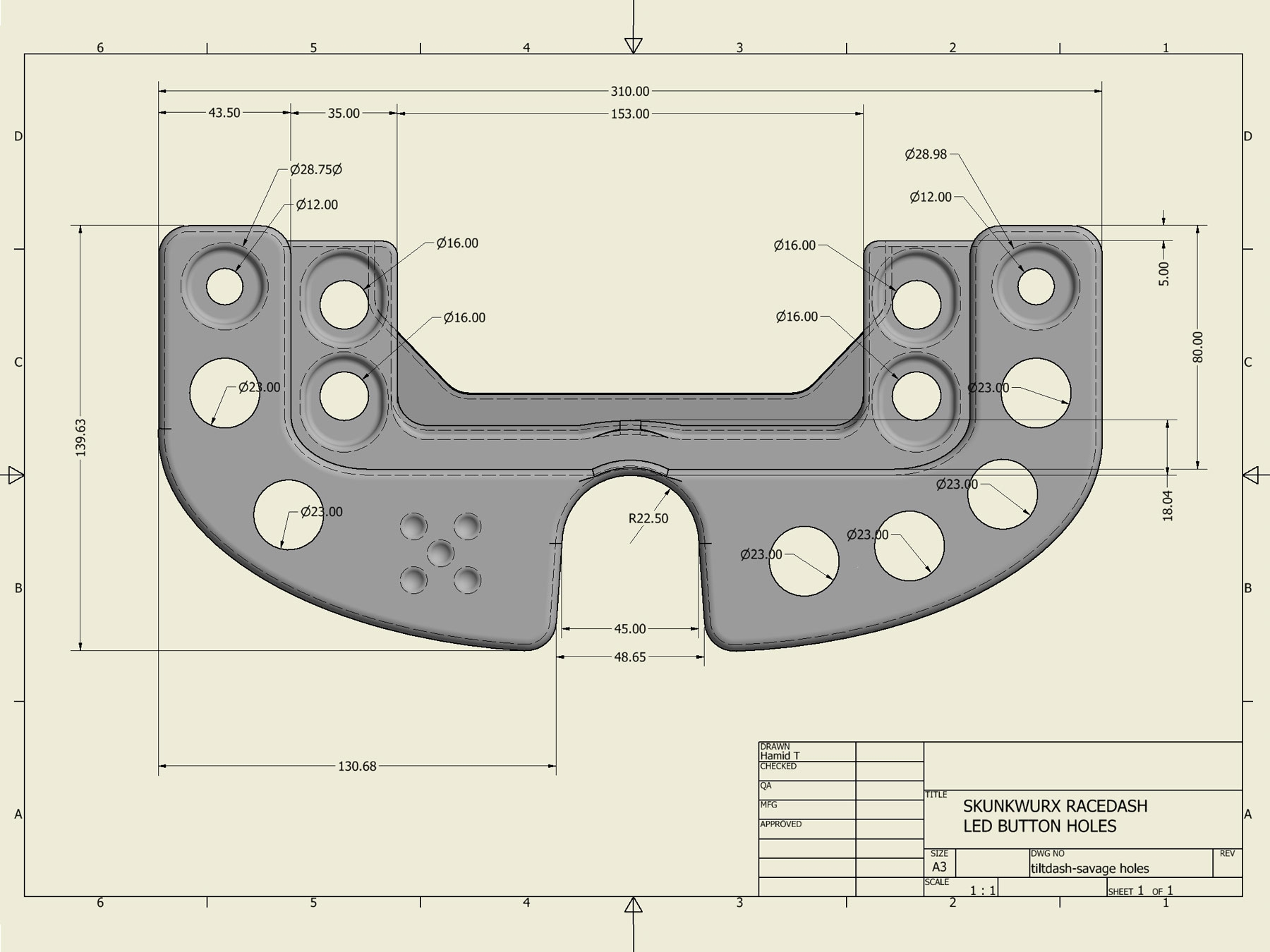

Skunkwurx RaceDash for Dash2 / Dash2 Pro with LED Buttons Skunkwurx RaceDash with Normal Waterproof Dash2 / Dash2 Pro Buttons Skunkwurx RaceDash with LED Waterproof Dash2 / Dash2 Pro Buttons Skunkwurx RaceDash for Dash2 / Dash2 Pro with LED Buttons - Dimensions Skunkwurx RaceDash for Dash2 / Dash2 Pro - Back Dimensions

Be the first to review this product

Availability:In stock

Details:

Skunkwurx RaceDash - Carbon Fibre Dash Surround with holes for Skunkwurx LED Buttons
See below for full description and specification

3

£349.00

Options

The base price is for the carbon fibre housing only. Please select if you require brushed aluminium LED-backlit switches with the RaceDash unit. This includes the illuminated indicator switch, rotary headlamp switch, fog light switch, alarm indicator, immobiliser start button, ignition button, and hazard switch. Dash2 / Dash2 Pro buttons are NOT included. If you are not installing on an Atom and require different switches for your use then please contact us for availability.

Choose the 4 buttons required to control the Dash2 / Dash2 Pro unit if you require them. The buttons come with fly-leads attached and control the Menu/Select/Up/Down functions on the Dash2 And Dash2 Pro

* Required Fields

£349.00

Details

Skunkwurx RaceDash Carbon Fibre Dash Surround for the Ariel Atom with holes for Skunkwurx LED Buttons. The dash surround allows you to use the Race Technology Dash2 or the Dash2 Pro display units with your Atom. Supplied without any buttons or Race Technology unit it is ideal if you already have your own parts to complete or you want to replace an existing unit.

Although originally designed for the Ariel Atom, we have had many customers install these units in a wide variety of track cras, from BMW's to Honda's to kit cars.

The unit is supplied untrimmed and will require cutting behind and below to fit the car. This is left untrimmed due to the variations in tolerance of the car and to allow you to position the unit to your preference. The carbon fibre can be cut with any Dremel-type tool. Should you prefer we can cut it before sending with the measurements we have.

Made of 100% Toray T300 Carbon Fibre with a 3K twill weave and cured with an epoxy resin. Finished with a high gloss UV-resistant topcoat. The T300 carbon material by Toray is the baseline carbon fibre used in aerospace applications. It has a 30 year production history and is known for its balanced composite properties, high quality, consistency, and reliability.

As carbon fibre products are made completely by hand using a labour intensive process, some variation or inconsistency in the weave pattern is common. This does not affect the dimensions or the structural integrity of the product, nor does it affect the final finish of the product.

Additional Information

Manufacturer Skunkwurx


Product Faqs

Ask a Question

  • Can you provide me with the measurements and damintions of the dash. I would like to purchase it for another kit car but need to make sure it will fit. Thanks

    Hi, we've uploaded another picture that has most of the dimensions on it. Let us know if you need to know anything else. We have had customers that have used these in all sorts of cars ranging from BMW's to kit cars.
